Prestressed concrete

Lore & Background

The material is produced by tensioning high-strength tendons—made from high-tensile steels, carbon fiber, or aramid fiber—located within or adjacent to the concrete. This compression counteracts tensile forces that will occur in service, giving the material the characteristics of high-strength concrete under compression and ductile high-strength steel under tension.

Reader's Guide

Prestressed concrete has developed beyond pre-tensioning to include post-tensioning, which occurs after the concrete is cast. Pre-tensioned concrete involves tensioning tendons before casting, with the concrete bonding to the tendons as it cures. Post-tensioned concrete involves tensioning tendons after the concrete has set, using protective sleeves or ducts. Bonded post-tensioning grouts the ducts after tensioning to protect tendons and lock in pre-tension, while unbonded post-tensioning allows permanent freedom of longitudinal movement via greased sheaths. The material is used in high-rise buildings, residential slabs, bridges, dams, silos, tanks, industrial pavements, and nuclear containment structures, allowing longer spans, reduced thicknesses, and material savings.

Did You Know?

• Tendons may be made from high-tensile steels, carbon fiber, or aramid fiber.
• Pre-tensioned concrete uses tendons directly bonded to the concrete, while post-tensioned concrete can use bonded or unbonded tendons.
• Bonded post-tensioning grouts the duct after tensioning to protect against corrosion and lock in pre-tension.

The Core Principle: Engineering Compression into Strength

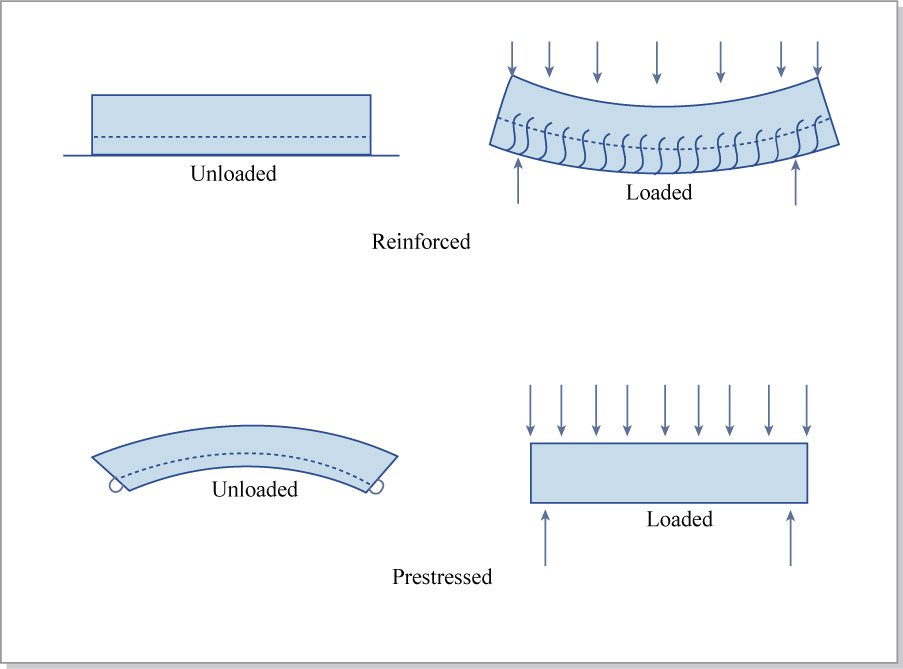

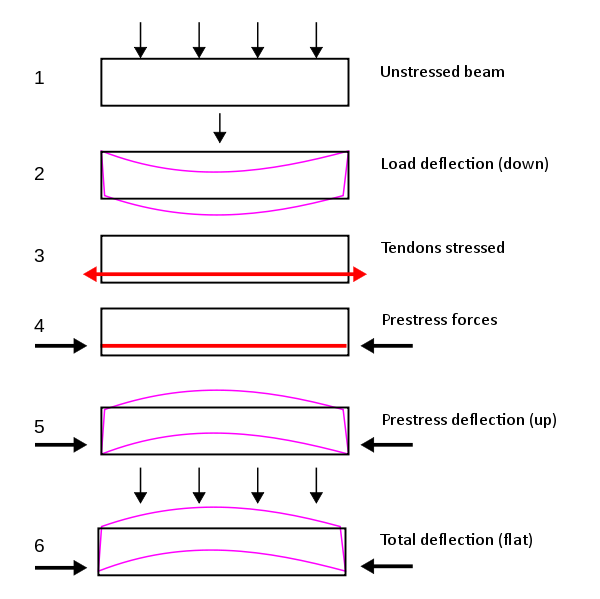

Prestressed concrete represents a deliberate inversion of how we think about concrete's weaknesses. Rather than accepting that concrete resists compression well but fails under tension, the technique introduces a planned state of compression into the material before it ever carries a service load. The mechanism relies on high-strength tendons—single wires, multi-wire strands, or threaded bars fabricated from high-tensile steels, carbon fiber, or aramid fiber—that are tensioned to squeeze the surrounding concrete. Once that initial compression is locked in, the composite element behaves almost dually: under further compressive loading it performs like high-strength concrete, while under tensile loading it responds like ductile, high-strength steel. The internal stress pattern is not arbitrary; it is engineered so that stresses generated by later imposed loads are partially or fully counteracted, yielding gains in structural capacity, serviceability, or both over conventionally reinforced concrete.

Pre-tensioning: The Prefabrication Workhorse

Pre-tensioning is the variant in which the tendons are stretched before any concrete is poured. The wires or strands are anchored between robust end blocks on a casting bed, and the fresh concrete is then placed around them. As the concrete cures and hardens, it bonds directly to the tendon surfaces. Once sufficient bond strength has developed, the end anchorages are released, and the stored tension in the tendons is transferred into the concrete as a permanent compressive force through static friction. Because the bond between early-age concrete and the tendon surface governs when release is safe, pre-tensioned tendons are typically individual wires or strands rather than bundled groups, maximizing the available bonding area. The casting bed can span many times the length of a single element, enabling several pieces to be fabricated end-to-end in one tensioning cycle—a setup that delivers substantial productivity gains and economies of scale. Straight tendons suit shallow precast beams and hollow-core slabs, while profiled or harped tendons, held in place by intermediate deviators, serve deeper bridge girders. Typical products include structural beams, floor slabs, balconies, lintels, driven piles, water tanks, and concrete pipes.

Post-tensioning: Stressing After the Pour

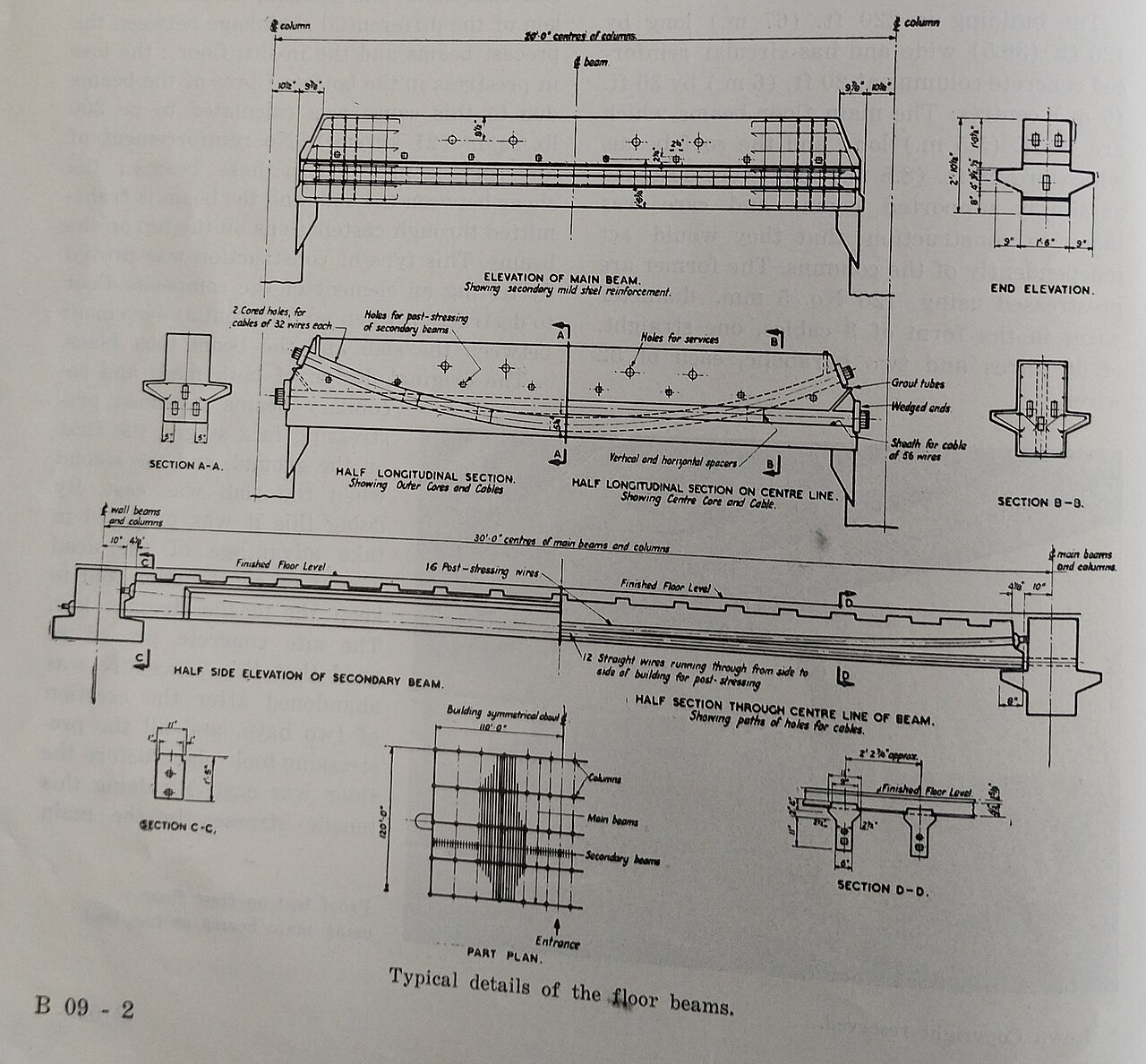

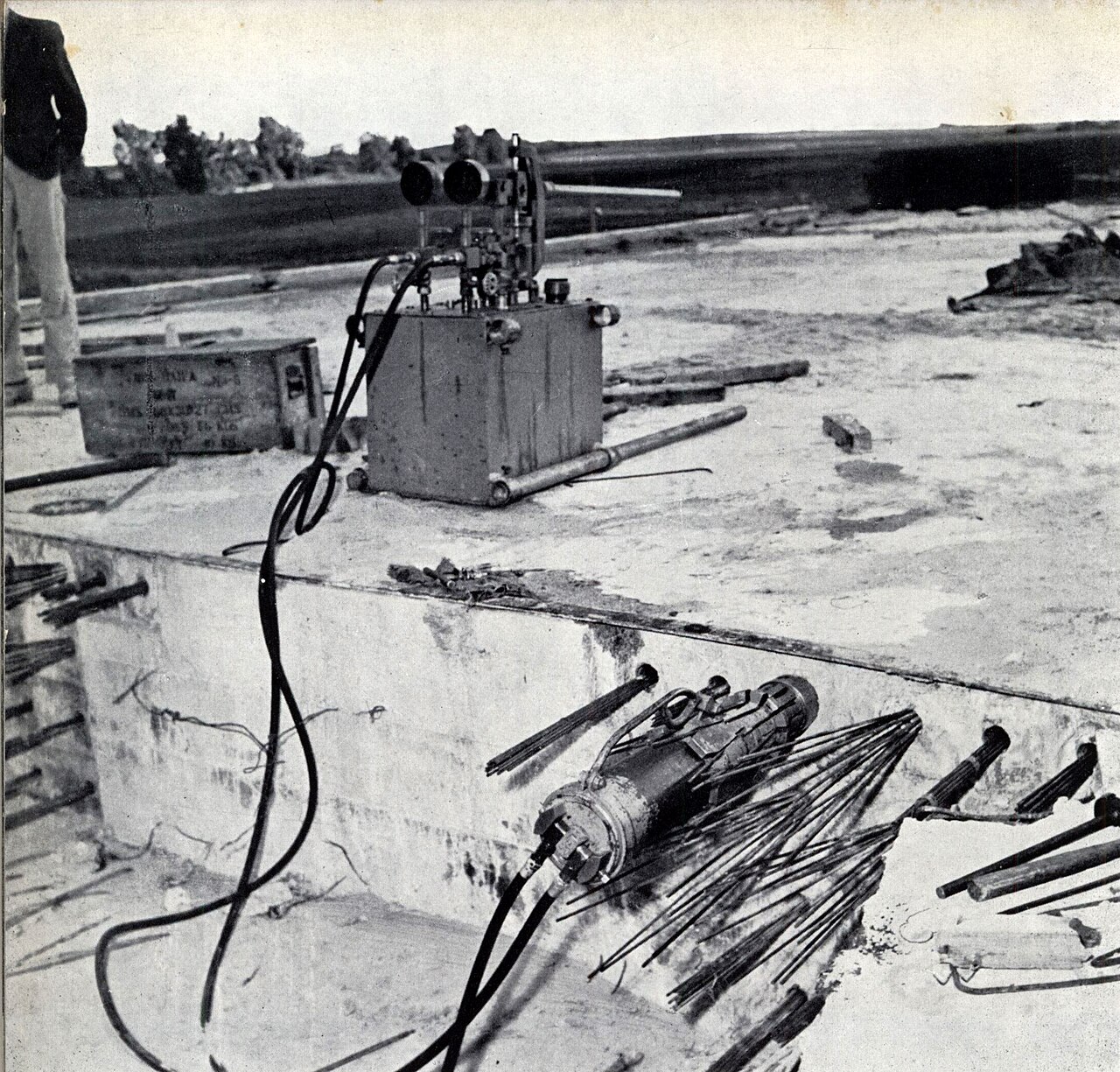

Post-tensioning reverses the sequence: the concrete structure is cast first, and the tendons are tensioned afterward. The tendons never touch the concrete directly; instead they are enclosed in protective sleeves or ducts made of plastic or galvanized steel, which are either cast into the structure or placed alongside it. At each end, a dedicated anchorage assembly is fixed firmly to the surrounding concrete. Once the concrete has set, pulling forces draw the tendon ends through these anchorages while pressing back against the concrete, generating a large, permanent compressive force. The locking mechanism varies with tendon type: button-head anchoring for wire tendons, split-wedge anchoring for strand tendons, and threaded anchoring for bar tendons. A key advantage of this approach is geometric flexibility—because the ducts are cast before tensioning, they can be profiled with vertical, horizontal, or combined curvature, and the resulting reaction forces can be directed to counter specific load patterns. Tendon systems are classified as bonded, where the duct is grouted after stressing to lock the tendon to the concrete, or unbonded, where a greased sheath keeps the tendon permanently free to slide.

Where Prestressed Concrete Builds the Modern World

The practical payoff of prestressed concrete is a broad expansion of what a single concrete element can achieve. Compared with simple reinforced concrete, it permits longer spans, thinner structural sections, and meaningful material savings—benefits that ripple through an enormous range of building and civil engineering projects. High-rise buildings exploit the technique in their floor systems; residential construction relies on prestressed slabs; foundation systems, bridge decks, and dam structures all draw on its superior load-carrying behavior. Silos, storage tanks, industrial pavements, and even nuclear containment structures benefit from the material's enhanced capacity and serviceability. The technology has evolved well beyond its original pre-tensioning roots: post-tensioning opened the door to on-site stressing of large, irregular geometries, while tensioning systems now range from monostrand configurations, where each wire or strand is stressed individually, to multi-strand arrangements in which all elements in a tendon are stressed simultaneously. Tendons can be embedded within the concrete volume or routed entirely outside it, giving engineers a flexible toolkit. From a late-nineteenth-century curiosity to a cornerstone of modern infrastructure, prestressed concrete continues to shape how we build.
